DAC and headphone amplifier in one

The British designed, engineered and built Mojo 2 is the most advanced portable DAC and headphone amplifier in the world.

Distinctly different from all other devices, the What Hi-Fi? Product of the Year-winning Mojo 2 uses proprietary British digital audio technology perfected over more than two decades, coupled to a powerful ‘FPGA’ processor.

The result is class-leading sound quality both on the move or at home, with the power to effortlessly drive any headphones. For music just as the artist intended, Mojo 2 brings you closer to the music than any other portable.

Chord Electronics MOJO 2 Portable DAC/Headphone Amplifier Lifestyle Top View

Key Features at a Glance

Improved FPGA: more resolution, power and efficiency
New menu function
'UHD' DSP: Advanced EQ
Improved battery: FPGA-controlled management plus improved capacity
Improved WTA filtering: 40 DSP cores for better transparency and lower noise
High-speed USB-C input
Two 3.5 mm headphone outputs
Wireless-ready - simply add the Poly streamer/server
768kHz Micro USB Input
Separate Micro USB Charging
768kHz Coax Input via Jack
96kHz Optical Input
Supports 800Ω Headphones
Supports up to 768kHz
Up to DSD 256 (4x) Capable
DSD via DoP
CNC Aluminium Chassis

Chord Electronics MOJO 2 DAC and Amplifier with iPad

KEY BENEFITS

Unrivalled digital audio processing; powerful 'FPGA' technology
Additional USB-C data input for fast data-transfer
Fully transparent 'Ultra HD' digital signal processing EQ, tailoring the sound to you
Take Mojo 2 wireless when adding the Poly streamer/server (2 TB)

Proudly made in Britain from aircraft-grade aluminium. Anodised, bead-blasted, precision CNC milled. Jett black finish.

UNIQUE FPGA TECHNOLOGY

For more than 20 years, Chord Electronics has exclusively used powerful programmable (FPGA) circuits with custom coding to provide the most advanced digital-to-analogue conversion performance in the world. With digital audio technologies perfected over two decades, Mojo 2 contains more digital audio know-how than any other small DAC, resulting in unrivalled sound quality, all backed by peerless technical measurements from the lab.

Chord Electronics Mojo 2 FGPA Technology

Versatile Connectivity

The Mojo 2 connects effortlessly to a range of digital devices, including smartphones, tablets, and laptops. Inputs include USB-C, Micro-USB, optical, and coaxial, with a dedicated Micro-USB port for charging. Two 3.5mm headphone jacks allow for shared listening, while the colorful control spheres provide easy operation and visual feedback. The newly added menu button expands functionality, offering new features such as the transparent UHD DSP function for precise sound customization.

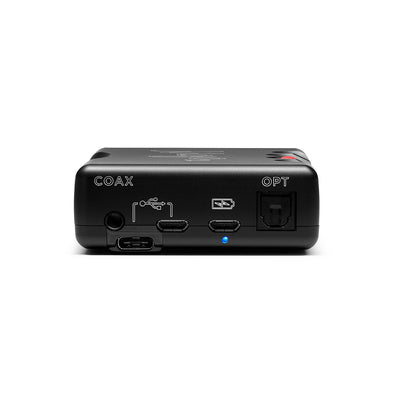

Chord Electronics MOJO 2 Portable DAC/Headphone Amplifier Connectivity

A: Coaxial input

B: USB-C input

C: Micro-USB input

D: Micro-USB charging input

E: Optical input

F: Charge status LED

G: Menu button (new)

HVolume down/menu '-'

I: Volume up/menu '+'

J: Power button

K: Headphone outputs (2x 3.5mm)

UHD DSP for Precision Sound Control

Mojo 2 introduces the world’s first lossless DSP, offering precise tone control across the full frequency range without any degradation in sound quality. This breakthrough technology ensures compatibility with a wide range of headphones and audio formats, delivering a perfect listening experience every time.

The custom 104-bit DSP core operates at 705/768 kHz, enabling 18 levels of adjustment per frequency band for detailed fine-tuning of bass, mid-bass, treble, and high treble.

Chord Electronics MOJO 2 Portable DAC/Headphone Amplifier with Audeze Headphones

Improved Functionality and Battery Life

The new menu system offers features like mute, four levels of crossfeed, and a button lock for travel. Volume control has also been refined, with an expanded range from +18 dB to -108 dB and two operational modes for low and high volumes.

A new FPGA-based battery system allows for faster charging, reduced power loss, and cooler operation. With an increased capacity, the Mojo 2 offers over eight hours of playback time. Its enhanced Intelligent Desktop Mode lets users bypass the battery for uninterrupted desktop use without affecting sound quality.

Chord Electronics MOJO 2 Portable DAC/Headphone Amplifier with Bag and Poly

Superior Sound Clarity

Thanks to a digital DC servo and DC coupling, the Mojo 2 is more transparent than ever. Its improved WTA filter, with 40,960 taps and 40 DSP cores, enhances clarity and reduces noise. Additionally, an updated noise-shaper and refined 4e Pulse Array DAC improve detail retrieval while lowering distortion and out-of-band noise, creating an ultra-neutral sound profile without the use of coupling capacitors.

Chord Electronics MOJO 2 Portable DAC/Headphone Amplifier on Desk

COMPATIBLE WITH POLY FOR STREAMING

Completely compatible with our Wireless streaming module Poly, Poly allows for wireless integration to your system.

Check out the Chord Electronics POLY v3.0+ here

In The Box

MOJO 2
Quick start Guide
Micro-USB to USB-A cable

Specifications

Five digital inputs: coaxial, dual-data coax, optical, Micro-USB and USB-C
Dynamic range 125.7 dB A wt.
Noise 2.7 uV A wt., no measurable noise floor modulation
Distortion and noise 0.00027 % at 2.5 V 300 ohms
Power output 1 % distortion:
90 mW 300 ohms (5.2 V RMS)
600 mW 30 ohms (4.2 V RMS)
0.06 ohms output impedance
118 dB stereo separation 1 kHz 300 ohms 2.5 V

Protect your MOJO 2 with a premium leather case

FAQ

What is the Mojo 2?
Mojo 2 is a portable DAC (Digital-to-Analog Converter) and headphone amplifier designed and built in Britain, featuring proprietary FPGA technology for class-leading sound quality and versatility.
What makes Mojo 2 unique?
Mojo 2 integrates Chord Electronics' custom FPGA technology, which has been perfected over two decades. It also introduces the world’s first lossless DSP, allowing precise sound control without quality loss.
What inputs and outputs does Mojo 2 support?
Mojo 2 features USB-C, Micro-USB, optical, and coaxial inputs, along with two 3.5mm headphone outputs. A separate Micro-USB input is used for charging.
How does the UHD DSP function work?
Mojo 2's UHD DSP allows precise tone control across the frequency spectrum without degrading sound quality. It offers 18 levels of adjustment per frequency band for bass, mid-bass, treble, and high treble.
Can the Mojo 2 drive high-impedance headphones?
Yes, Mojo 2 can effortlessly drive headphones up to 800Ω, delivering powerful, clear sound with a wide dynamic range.
How long does the battery last?
Mojo 2 offers over 8 hours of playback time and features an intelligent battery management system that reduces power loss and allows for desktop use without affecting sound quality.
Is the Mojo 2 compatible with wireless streaming?
Yes, the Mojo 2 is fully compatible with the Chord Poly module, which adds wireless streaming capabilities.
What is the FPGA technology in Mojo 2?
FPGA (Field-Programmable Gate Array) technology in Mojo 2 is custom-coded to deliver unmatched digital-to-analog conversion performance, offering ultra-transparent sound and high processing power.
What is included in the box?
The Mojo 2 comes with a quick start guide, a 60-day Roon subscription, and a Micro-USB to USB-A cable for charging and connection.
What devices can Mojo 2 connect to?
Mojo 2 can connect to smartphones, tablets, laptops, and other digital audio sources with USB-C, optical, or coaxial inputs. It supports high-resolution audio up to 768kHz and DSD256.

About Chord Electronics

Chord Electronics first took flight from the aviation world, where engineering without limits means uncompromising standards. This concept designed by company owner John Franks has helped shape our philosophy since the company’s inception in 1989. Our first amplifiers were supplied to the BBC, followed by world-leading studios including Abbey Road, Sony Music (New York) and later, The Royal Opera House.

Our reputation within the professional world generated demand for a domestic range encompassing the design, engineering and build standards demanded of the finest pro equipment. Today, we apply proprietary technologies to all of our British-made products and proudly deliver studio-grade audio performance across the entire Chord range.

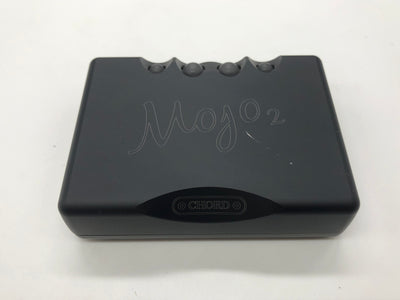

Chord Electronics MOJO 2 Portable DAC/Headphone Amplifier (Open Box)
