Ferrum WANDLA Goldensound + OOR + Hypsos Dual-Output Power System BUNDLE

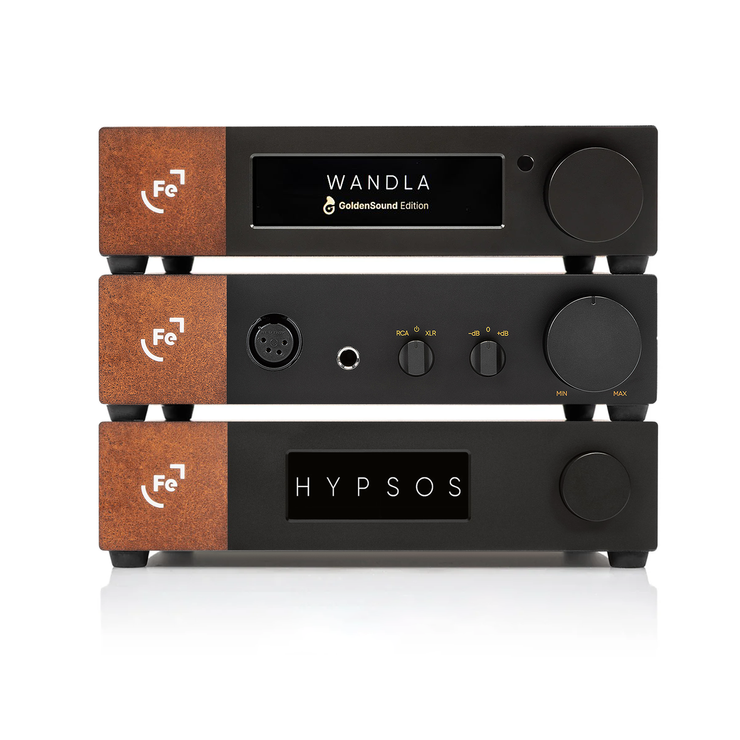

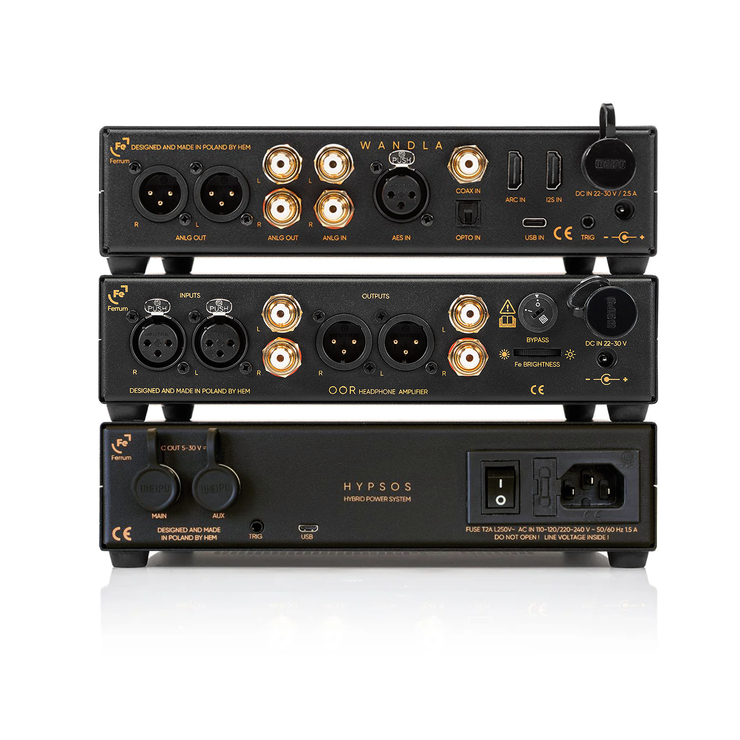

Bundle Includes

• WANDLA Goldensound
• OOR
• Hypsos Dual-Output
• 2 x FPL 0.5m

WANDLA GoldenSound Edition

WANDLA’s sound signature and its unique features like Dynamic Digital Filtering appeal to many music lovers all over the world. But what if we could tailor WANDLA even more? This was exactly what our talented design team had in mind when they started to think outside the box once again. Reaching out to the head-fi community they came into contact with renowned head-fi and high-end audio expert Cameron Oatley from GoldenSound. After an intensive period of braining, research and development they came up with the idea for WANDLA GoldenSound Edition which actually converts WANDLA to cater specific needs. Wandla GoldenSound Edition has some extra features created in partnership with Cameron Oatley from GoldenSound.

Elevated digital headroom

Many modern musical tracks are produced in a waythat leaves very little headroom in the recording, often referred to as the Loudness Wars, This can cause clipping and additional distortion during playback on most DACs due to the oversampling filter being unable to accurately reconstruct strong transients. The WANDLA has its own digital processing headroom, but GoldenSound Edition has elevated headroom to accommodate it to its additional DSP functions, which are described in below paragraphs. Therefore, WANDLA GoldenSound Edition is highly immune to intersample overs even in bypass mode at full output level, allowing you to play back any music free from additional distortion, and enjoy a higher quality sound. Moreover, due to its DSP functions, now this sound can be even more tailored to your personal taste.

Spatial Enhancement

The WANDLA GoldenSound Edition features a unique spatial enhancement that utilizes the power of the Ferrum SERCE module to provide an expanded soundstage and improved clarity of separation between musical elements, whilst avoiding the drawbacks commonly found in other approaches. A Headphone Mode and a Speaker Mode are offered to provide an enhancement tailored to each use-case, and this is achieved without any coloration to the frequency response, no additional distortion, and no tricks like added reverb.

Tube Mode

The WANDLA GoldenSound Edition features a tube mode, which intentionally increases the even-order harmonic distortion produced by the DAC, similar to the distortion added by a tube amplifier. This allows the user to enjoy a warmer, richer sound without directly changing frequency response, and without the other drawbacks commonly found in tube based devices such as increased noise.

Impact +

 The WANDLA GoldenSound Edition features an Impact + function for those that enjoy a little more low-end in their music listening experience. Though rather than a basic bass-shelf, this feature uses a customized two-band EQ which not only elevates bass but provides additional punch and dynamic impact.

No MQA

The WANDLA GoldenSound Edition no longer uses any MQA processing, with all content being kept as untouched PCM other than if you choose to enable one of the sound tuning features. All of DSP functions of WANDLA GoldenSound Edition are extensively using processing power of WANDLA’s SERCE module. Therefore, to ensure seamless operation, MQA decoder is not available in GoldenSound Edition.

Hardware Voltage Adjustment

The WANDLA GoldenSound Edition benefits from a hardware level output voltage adjustment, allowing the user to swap between just below 10 Vrms output to a just below 4 Vrms output. This is facilitated via a dedicated hardware voltage divider in the output stage of the DAC, allowing the user to select lower output voltage and ensure compatibility with all amplifiers, without a need to use any digital volume control, or to have analog volume control components in the signal path. This hardware voltage divider will be available on the standard edition of WANDLA and WANDLA GoldenSound Edition units starting with board revision v4.0.

Revisions older than v4.0 will support this functionality but do so in a slightly different way. These revisions will use the existing analog voltage control instead. While we originally intended to achieve this by digital attenuation, new insights brought us another, better solution. By using the analog voltage regulation, we can even get older revisions of the WANDLA board closer to v4.0, where this functionality is achieved by hardware as well, but only by a different part. This solution means all WANDLA users will be able to enjoy the fruits of our labor.

IN THE BOX

• 1x Ferrum WANDLA GoldenSound Edition dac/pre-amp

• 1x power cord

• 1x remote control

• 1x USB cable

• 1x AC/DC power adapter

OOR, the only headphone amplifier with a soul

OOR fully Balanced analogue headphone amplifier

• Proprietary discrete power amp technology
• Proprietary 4-pin Ferrum connector for HYPSOS
• Balanced 4-pin XLR and unbalanced RCA headphone outputs

OOR will redefine the category of headphone amplifiers. OOR will drive any headphones effortlessly to the max of their potential, while preserving the essence of the music it amplifies. Ultra low distortion, zero fatigue, huge dynamics and unrivaled detail result in ultimate enjoyment. OOR actually makes something that is very difficult to accomplish, seem like the most natural thing on earth.

Truly Balanced
The signal path stays truly balanced using the XLR inputs and becomes truly balanced using the RCA inputs.

Ease of use
only three knobs on the front panel to control the most important settings.

Ferrum Power Link
OOR performs very, very good right out of the box. But OOR is made to excel above and beyond when used together with HYPSOS. We use what we dubbed our Ferrum Power Link (FPL in short) to connect the two. HYPSOS then will perform to its maximum, unleashing unheard musicality from the combination with OOR.

Superior control
perfected steering of output transistors protect them and never let them turn off, therefore reducing distortion to inaudible levels and keeping them in a state where they can instantly unleash all their power, crucial for high dynamics, superlative control and authority in sound.

Enhanced transparency
The whole design is focused on a balanced and very transparent sound signature, making listening fatigue something of the past.

Discrete design
The discrete power amp technology is developed in-house to achieve the best possible analog quality.

Features

• Look and behold the understated looks of OOR’s front, only to camouflage it's intricate design laid bare on the rear. 100% analogue, 100% natural, 100% musical
• Fully balanced from A to Z, even right after the RCA inputs, to get the max out of any headphones. Brightness of the logo on OOR’s front can be dimmed for ease on the eyes. Ferrum Power Link for ultimate connection with HYPSOS
• Combine OOR with HYPSOS to unleashing unheard musicality. Together they will excel above and beyond
• Unique output cable design: two wires delivering the power and two wires providing the feedback to ensure flat voltage at every moment. We named this technique Ferrum Power Link (FPL) and it eliminates the harmful effects of the cable's resistance effectively improving transient response. The current delivery speed at the powered device's input is significantly improved
• To get the most out of OOR you can connect it with HYPSOS using our proprietary Ferrum Power Link DC power cable. If the FPL cable isn't already packaged with the HYPSOS, it can be ordered separately

Specifications

• Gain (dB): balanced -4 dB, + 6dB, +16 dB / single ended -10 dB, 0 dB, 10 dB
• Operation: Fully balanced, proprietary discrete power amp technology
• Inputs: XLR, RCA, 2.5 mm DC connector centre positive, proprietary 4-pin DC connector
• Outputs: Balanced 4-pin XLR, 6.35 mm jack
• Frequency Response: 20 Hz – 100 kHz 0.1 dB
• Output Power Single Ended: 400 mW into 300 Ω, 2 W into 60 Ω
• Output Power Balanced: 1.600 mW into 300 Ω, 8 W into 60 Ω
• THD + Noise: TBA
• Input Impedance: 94 kΩ
• Output Impedance Single Ended: 22 Ω on pre-amp
• Output Impedance Balanced: 44 Ω on pre-amp
• Output headphones Impedance: < 0.3 Ω
• Power Consumption: Idle <15 W
• Power Adapter: 100/240 V AC to 22-30 V DC
• Dimension (W x D x H) (In/cm): 8.6 x 8.1 x 2.0 inch / 21.7 x 20.6 x 5 cm
• Weight (kg/lbs): 1.8 kg / 3.97 LBS

Hypsos Dual-Output

It made sense for Ferrum to continue the journey up the hifi chain. It brought us OOR, our flagship headphone amplifier, ERCO, our entry level DAC and WANDLA, The Converter. What these products have in common is their power requirements. And one of HYPSOS’ features is its enormous power reserves… Do you see it coming?

Power reserves are so abundantly available that HYPSOS could in fact easily power two devices at the same time, as long as they have the same supply voltage requirements. While we first started offering our Ferrum Power Splitter, we now offer HYPSOS with two power outputs. This means you can now connect two Ferrum devices, for instance OOR and WANDLA (or two other devices with the same power requirements) simultaneously, without the need for another external component and associated cable spaghetti. HYPSOS with double output brings you an extra level of upgradeability at an exciting price point, again proving Ferrum’s journey to change the landscape of high-end audio in relation to affordability is indeed a continuing saga.

PLEASE NOTE: Hypsos Dual-Output comes with ONE cable; auxiliary output cable must be purchased separately.

HYPSOS Dual Output

Comes with a high quality DC power cable fitted to order to connect to the most commonly used DC inputs. Custom cables can be made to order.

Hybrid Power System

Linear/switching hybrid design to get the advantages from both techniques - low ripple and noise as well as fast transient response and high efficiency.

Sweet Spot Tuning (SST)

Possibility to fine tune the output voltage for the best sound. The voltage level can be safely adjusted on the fly to allow easy comparison testing.

Advanced Automation

Compatibility with Apple TV remote, Trigger in/out connector; possibility to automate power-up of the devices with standby mode even without dedicated trigger connection.

Detailed and revealing yet unfatiguing sound

Makes your current audio setup perform to its potential. Tweak the sound modifying the voltage level on the fly and use the preferred combination of the 4-Terminal Sensing and Spread Spectrum Mode settings.

Distinct user levels

Using pre-configured settings from the list of supported devices or setting custom parameters manually. Wide continuous ouput voltage range of 5-30V with up to 6A of current delivered to the load. HYPSOS is as universal a device as it gets.

4T Sensing Design (4TSD)

Ensuring the exact voltage level precisely at the point of the powered device DC input terminal - special cable design and feedback to ensure flat voltage at every moment. This technique eliminates the harmful effects of the cable's resistance effectively improving transient response.

Extremely safe to use

Automatic Transformer Voltage Adjust (ATVA), Electronic Output Voltage Polarity Switch and overvoltage, current limit and short protection.
