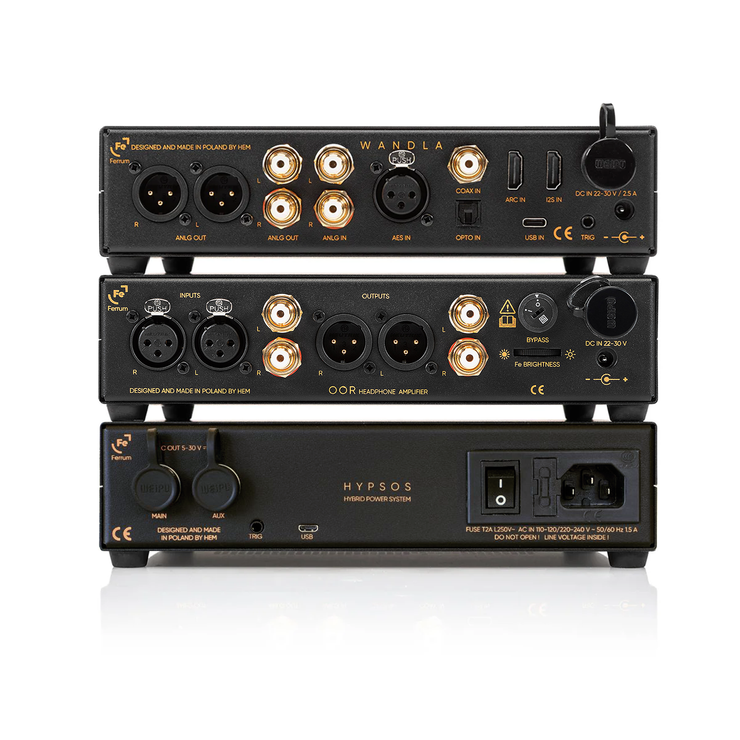

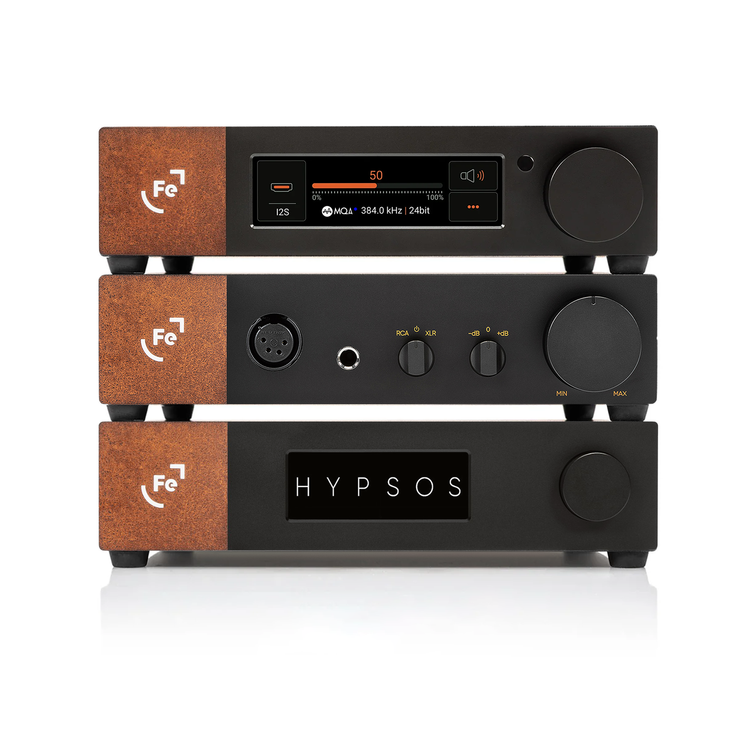

Ferrum WANDLA 2.0 + OOR + Hypsos Dual-Output Power System BUNDLE

Bundle Includes

• WANDLA 2.0
• OOR
• Hypsos Dual-Output
• 2 x FPL 0.5m

WANDLA by Ferrum prepare to be converted by the real thing!

With WANDLA, we are making a statement to the current and next generation of music lovers. WANDLA represents tomorrow’s standard of high end digital-to-analog conversion. Think of WANDLA like a Formula 1 racing car. Like the F1 constructor’s team building the best racing car, Ferrum created the best engine for The Converter.

• Proprietary fully balanced modified IC pre-amplifier, fine tuned for WANDLA
• Specially programmed USB, and tuned coaxial and optical S/PDIF, ARC and I2S ports, optimized for audio
• Proprietary optimized ARM chip offers the shortest signal path possible, making 5 chips redundant.
• Includes MQA® decoder/renderer and digital filter selection
• Proprietary Signalyst filters (two included at launch)
• Proprietary 4-pin Ferrum connector for HYPSOS
• Balanced XLR and unbalanced RCA line outputs
• Digital and Analogue volume control
• EES Sabre ES9038PRO with three filter settings
• Remote control included


Tomorrow’s High End Audio Today
As The Converter WANDLA leads the way for tomorrow’s high end at tentative price levels. WANDLA offers flagship audio quality at an unprecedented price.

Finely tuned DA conversion
WANDLA is the embodiment of Ferrum’s digital know-how and their in house developed analogue audio and electrical technology. The ESS Sabre ES9038PRO current to voltage (I/V) converter is fine-tuned to perform to its maximum.

Optimized ARM
Optimized ARM chip offers shortest signal path possible making 5 chips redundant. Includes MQA® decoder and renderer.

Dynamic Digital Filtering
WANDLA has seven ESS digital filters to choose from as standard and, as a world first, lets its audience vote the best from a total of eight WANDLA filters, created for Ferrum by renowned filter-maker HQ Player

Optimized Digital inputs
Specially programmed USB, and tuned coaxial and optical S/PDIF, ARC (TV) and I2S ports, optimized for audio

Truly Balanced
The signal path stays truly balanced using the XLR inputs and becomes truly balanced using the RCA inputs.

Enhanced transparency
The whole design is focused on a balanced and very transparent sound signature, making listening fatigue something of the past.

Made for HYPSOS
While WANDLA performs very good right out of the box it is made to excel above and beyond when used together with HYPSOS. Using the proprietary Ferrum Power Link (FPL) connection both components will perform to their maximum, unleashing unheard of musicality.

Features

Unique output cable design: two wires delivering the power and two wires providing the feedback to ensure flat voltage at every moment. We named this technique Ferrum Power Link (FPL) and it eliminates the harmful effects of the cable's resistance effectively improving transient response. The current delivery speed at the powered device's input is significantly improved.

WANDLA comes with a carefully selected DC power adapter. To get the most out of WANDLA you can connect it with HYPSOS using our proprietary Ferrum Power Link DC power cable. This FPL cable can be ordered separately.

Specifications

• Operation: Fully balanced, proprietary IC power amp
• DAC chip: ESS Sabre ES9038PRO
• DAC resolution: 768k/32bit, DSD 256
• Digital inputs:
• • AES/EBU (up to 196kHz/24bit, DoP 64)
  • Optical S/PDIF (up t/24bit)
  • Coaxial S/PDIF (up to 192kHz/24bit, DoP 64)
  • USB-C (up to 768kHz/32bit, DSD 256)
  • ARC (up to 192kHz/24bit), TV input with CEC
  • I2S (up to 768kHz/32bit, DSD 256), PS Audio® compatible
• MQA®: decoder and renderer (on all digital inputs)
• Analog inputs: RCA
• Analog input Vmax: 9,5V RMS (2 – 3,5V RMS recommended)
• Analogue input imp: 47kΩ
• Line outputs: balanced XLR; unbalanced RCA
• Volume control: analogue with bypass option / digital for DAC operation only
• Output level: @0dBFS, 1kHz sine 9,3V RMS balanced, 4,65V RMS unbalanced
• Frequency response: 10Hz – 200kHz +/- 0,1dB analog inputs
• DAC THD: -121dB (0,00009%); THD+N: -115dB (unweighted)
• Analog input THD: -123dB @ 2V RMS output level
• Dyn. range analog: 127dB (A-weighted)
• Dyn. range digital: 127dB (A-weighted)
• Crosstalk: -120dB for 1kHz, better than -100dB for 20Hz -20kHz
• Output impedance: 22Ω unbalanced
• Output impedance: 44Ω balanced
• Power consumption: 10W idle / 15W max
• Power inputs: 5,5/2,5 mm DC connector centre positive proprietary FPL 4-pin DC connector (FPL) 22-30VDC
• Power adapter: 100-240 VAC to 24VDC
• Dimensions (WxDxH): 21,7 x 20,6 x 5 cm; 8.6 x 8.1 x 2.0 inch
• Weight: 1,8 kg; 3.97 lbs

OOR, the only headphone amplifier with a soul

OOR fully Balanced analogue headphone amplifier

• Proprietary discrete power amp technology
• Proprietary 4-pin Ferrum connector for HYPSOS
• Balanced 4-pin XLR and unbalanced RCA headphone outputs

OOR will redefine the category of headphone amplifiers. OOR will drive any headphones effortlessly to the max of their potential, while preserving the essence of the music it amplifies. Ultra low distortion, zero fatigue, huge dynamics and unrivaled detail result in ultimate enjoyment. OOR actually makes something that is very difficult to accomplish, seem like the most natural thing on earth.

Truly Balanced
The signal path stays truly balanced using the XLR inputs and becomes truly balanced using the RCA inputs.

Ease of use
only three knobs on the front panel to control the most important settings.

Ferrum Power Link
OOR performs very, very good right out of the box. But OOR is made to excel above and beyond when used together with HYPSOS. We use what we dubbed our Ferrum Power Link (FPL in short) to connect the two. HYPSOS then will perform to its maximum, unleashing unheard musicality from the combination with OOR.

Superior control
perfected steering of output transistors protect them and never let them turn off, therefore reducing distortion to inaudible levels and keeping them in a state where they can instantly unleash all their power, crucial for high dynamics, superlative control and authority in sound.

Enhanced transparency
The whole design is focused on a balanced and very transparent sound signature, making listening fatigue something of the past.

Discrete design
The discrete power amp technology is developed in-house to achieve the best possible analog quality.

Features

• Look and behold the understated looks of OOR’s front, only to camouflage it's intricate design laid bare on the rear. 100% analogue, 100% natural, 100% musical
• Fully balanced from A to Z, even right after the RCA inputs, to get the max out of any headphones. Brightness of the logo on OOR’s front can be dimmed for ease on the eyes. Ferrum Power Link for ultimate connection with HYPSOS
• Combine OOR with HYPSOS to unleashing unheard musicality. Together they will excel above and beyond
• Unique output cable design: two wires delivering the power and two wires providing the feedback to ensure flat voltage at every moment. We named this technique Ferrum Power Link (FPL) and it eliminates the harmful effects of the cable's resistance effectively improving transient response. The current delivery speed at the powered device's input is significantly improved
• To get the most out of OOR you can connect it with HYPSOS using our proprietary Ferrum Power Link DC power cable. If the FPL cable isn't already packaged with the HYPSOS, it can be ordered separately

Specifications

• Gain (dB): balanced -4 dB, + 6dB, +16 dB / single ended -10 dB, 0 dB, 10 dB
• Operation: Fully balanced, proprietary discrete power amp technology
• Inputs: XLR, RCA, 2.5 mm DC connector centre positive, proprietary 4-pin DC connector
• Outputs: Balanced 4-pin XLR, 6.35 mm jack
• Frequency Response: 20 Hz – 100 kHz 0.1 dB
• Output Power Single Ended: 400 mW into 300 Ω, 2 W into 60 Ω
• Output Power Balanced: 1.600 mW into 300 Ω, 8 W into 60 Ω
• THD + Noise: TBA
• Input Impedance: 94 kΩ
• Output Impedance Single Ended: 22 Ω on pre-amp
• Output Impedance Balanced: 44 Ω on pre-amp
• Output headphones Impedance: < 0.3 Ω
• Power Consumption: Idle <15 W
• Power Adapter: 100/240 V AC to 22-30 V DC
• Dimension (W x D x H) (In/cm): 8.6 x 8.1 x 2.0 inch / 21.7 x 20.6 x 5 cm
• Weight (kg/lbs): 1.8 kg / 3.97 LBS

Hypsos Dual-Output

It made sense for Ferrum to continue the journey up the hifi chain. It brought us OOR, our flagship headphone amplifier, ERCO, our entry level DAC and WANDLA, The Converter. What these products have in common is their power requirements. And one of HYPSOS’ features is its enormous power reserves… Do you see it coming?

Power reserves are so abundantly available that HYPSOS could in fact easily power two devices at the same time, as long as they have the same supply voltage requirements. While we first started offering our Ferrum Power Splitter, we now offer HYPSOS with two power outputs. This means you can now connect two Ferrum devices, for instance OOR and WANDLA (or two other devices with the same power requirements) simultaneously, without the need for another external component and associated cable spaghetti. HYPSOS with double output brings you an extra level of upgradeability at an exciting price point, again proving Ferrum’s journey to change the landscape of high-end audio in relation to affordability is indeed a continuing saga.

PLEASE NOTE: Hypsos Dual-Output comes with ONE cable; auxiliary output cable must be purchased separately.

HYPSOS Dual Output

Comes with a high quality DC power cable fitted to order to connect to the most commonly used DC inputs. Custom cables can be made to order.

Hybrid Power System

Linear/switching hybrid design to get the advantages from both techniques - low ripple and noise as well as fast transient response and high efficiency.

Sweet Spot Tuning (SST)

Possibility to fine tune the output voltage for the best sound. The voltage level can be safely adjusted on the fly to allow easy comparison testing.

Advanced Automation

Compatibility with Apple TV remote, Trigger in/out connector; possibility to automate power-up of the devices with standby mode even without dedicated trigger connection.

Detailed and revealing yet unfatiguing sound

Makes your current audio setup perform to its potential. Tweak the sound modifying the voltage level on the fly and use the preferred combination of the 4-Terminal Sensing and Spread Spectrum Mode settings.

Distinct user levels

Using pre-configured settings from the list of supported devices or setting custom parameters manually. Wide continuous ouput voltage range of 5-30V with up to 6A of current delivered to the load. HYPSOS is as universal a device as it gets.

4T Sensing Design (4TSD)

Ensuring the exact voltage level precisely at the point of the powered device DC input terminal - special cable design and feedback to ensure flat voltage at every moment. This technique eliminates the harmful effects of the cable's resistance effectively improving transient response.

Extremely safe to use

Automatic Transformer Voltage Adjust (ATVA), Electronic Output Voltage Polarity Switch and overvoltage, current limit and short protection.
