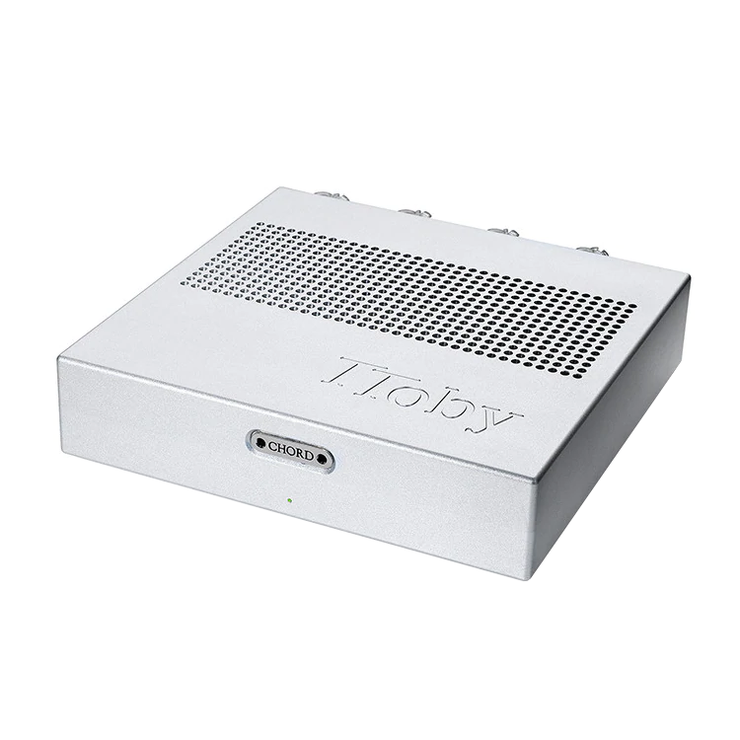

Chord Electronics - TToby 100w Stereo Power Amplifier


Regular price $4,450.00 Sale Save $-4,450.00 (Liquid error (sections/product-template.liquid line 200): divided by 0% OFF)

Found a better price?
We can match it

Financing options


Product SKU: TTOBY Blk

Only 1 left in stock
11

Email me when available

Email me when this product is in stock again

(Fun fact: By filling out this form, you let us know there's demand for this item!)

We will only send you a follow-up email once the product becomes available. Your email address will not be shared with anyone else.

We are an Authorized U.S. Dealer

Order in the next for shipping today.
Receive FREE U.S. shipping with estimated delivery
between Wed, Feb 08 and Thu, Feb 09
Order now for shipping tomorrow.
Receive FREE U.S. shipping with estimated delivery
between Thu, Feb 09 and Fri, Feb 10

Ⓧ Not available for shipping outside the U.S.

General 30 Day Return/Exchange Policy
Available Online and In Store

Need help or product is sold out? Call (212) 354-6424, Chat or Email us

Product Details from the Brand

Any mention of "us," "we," "our," etc is by Chord Electronics, not Audio46

TToby (80-250V)

The TToby range may be ideally suited to compact living environments, but don’t let that fool you. With similar legendary amplification derived from our SPM range, TToby doesn’t compromise on power or providing you with the purest audio experience possible.

Description

The TToby has been designed to complement our desktop DAC/headphone amplifier, the Hugo TT 2 and shares the same compact form factor as its stablemate. The combination of our 1M-tap digital upscaling device M Scaler, Hugo TT 2 and TToby provides a high-quality hi-fi system, with desktop dimensions and a space-saving footprint. Despite its size, the TToby sets new standards for small amplifiers and takes full advantage of Chord Electronics’ proprietary amplification technology and design know-how.

The addition of TToby, enables owners of the Hugo TT 2 to fully exploit the device as a ‘digital preamp’, effortlessly driving a wide variety of loudspeakers, large or small, in addition to the Hugo TT 2’s headphone prowess. The TToby is a 100-watt design, featuring both an unbalanced and balanced input, to take advantage of the Hugo TT 2’s XLR output.

TToby features two of our famous high-frequency power supplies and benefits from forced air-cooling through the aluminium casework by means of a sonically closed anechoic miniature multi-speed quadruple-fan plenum chamber, enabling the external design to be free of sharp heatsinks and, therefore, carry a stunning aesthetic. The M Scaler/Hugo TT 2/TToby combination offers both class-leading DAC and amplification technology via headphones and loudspeakers, giving complete flexibility within the demands of busy households.

Features

Inputs:

1x Stereo Pair of Gold Plated Balanced XLR Inputs

1x Stereo Pair of Gold Plated Unbalanced RCA Inputs

Output:

1x Pair of High Quality, High Current, Gold Plated Type Speaker Terminals

KEY FEATURES

  • 100w into 4Ω
  • >-83dB Signal to Noise Ratio
  • Class AB Sliding Bias
  • HF Switch Mode Power Supply
  • Chord MOSFET Construction
  • Fully Balanced Circuitry
  • Fan Cooled
  • Stereo Balanced XLR Inputs
  • Stereo Unbalanced RCA Inputs
  • Solid Aluminium Chassis

Technical Spec

Output Power:

100w RMS per channel @ 0.016% distortion into 4Ω

Frequency Range:

5Hz – 100kHz +/- 0.5dB

Signal to Noise Ratio:

Better than -83dB

Channel Separation:

Better than 95dB

Input Impedance:

100kΩ Unbalanced/Balanced

Input Capacitance:

<32pf

Output Inductance:

2.6μH

Slew Rate:

70v per μS 1kHz, 20v Square Wave

Gain:

30dB

Stability:

Unconditional

Dimensions:

5.9cm (H) 23.5cm (W) 25.6cm (D)

Weight:

3.75kG
