A New Epoch is Beginning

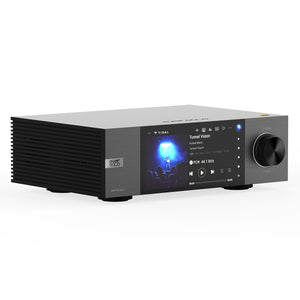

With years of development, DMP-A6 has reformed traditional streamers by solving pain points across the industry, it implies the beginning of a new epoch. DMP-A6 is an all-in-one player, with quad-core processor and large memory, tailored for lossless music playback. Rich digital input and output ports, HDMI DSD multi-channel output, dual ESS9038Q2M professional DAC, fully balanced differential circuit, and professional audio tuning, all contribute to the superior performance of DMP-A6. Unprecedented experience is offered to music lovers with music streaming services, local music management, mobile apps, and exclusive control systems.

Self-developed EOS Audio Engine

EOS (Eversolo original sampling-rate audio engine) is developed by Eversolo engineers, with the support of outputting original sampling rate, that is, audio playback completely bypasses the Android SRC restriction, supporting the Direct audio output of third-party apps (Apple Music hi-res Direct output).

Master Recording Playback and Decoding

Almost all ultra-high sampling master recording formats are supported by DMP-A6, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf/.dff/.iso/.dst) stereo/multichannel and MQA, etc.

Large LCD Touchscreen for Better User Interaction

Equipped with a large 6" LCD high-definition touchscreen, DMP-A6 has a professional streamer system, a simple but exquisite user interface, as well as on-screen intuitive touch controls for system settings, local music library, and third-party apps, it runs smoothly as a mobile phone.

DOH Chips for HDMI DSD Multichannel

As a multi-channel streamer, DMP-A6 adopts DOH processing chips for HDMI audio especially to play and output master DSD music. Except for the support of DSD Native multi-channel raw output and D2P output (PCM multi-channel output) decoding, it also provides the regenerated high-precision independent clock for HDMI. So that it can also be used as a digital turntable.

Internal High-speed M.2 SSD Slot

An M.2 NVME 3.0 2280 SSD slot is built in to install SSD without removing the cover, the maximum storage is 4TB. Faster, stable, and with no noise, it is the key to local high-quality music playback.

Low Ripple High-Performance Power Module

The DMP-A6 is equipped with a low-noise regulated switching power supply module and several dedicated audio capacitors with less ripple and interference. The choke filter circuit is specifically made for AC input, reducing high-frequency line noise in the region of 100 KHz to 5 MHz, ensuring cleaner power, a softer background noise, and clearer musical details.

Rich Input and Output Ports

DMP-A6 can be used as a digital turntable to connect with various high-end decoding devices by digital output ports including HDMI, USB, Optical, and Coaxial. As a decoder, DMP-A6 can connect with audio source equipment like PCs and mobile devices by Coaxial, Optical, Type-C inputs and APTX HD Bluetooth. XLR and RCA outputs are to connect with active speakers or power amplifiers.

3rd Generation XMOS 316 Audio Solution

With 3rd generation XMOS 316 audio processor, DMP-A6 has faster speed and higher USB bandwidth, ensuring the lossless transmission of high-definition audio data. USB port supports DSD512 Native, PCM768@32bit, and MQA full decoding. Optical and Coaxial ports support DSD 64 (DOP), PCM1920@24Bit.

Low Jitter Dual Clock Processing

Low-jitter high-precision dual clocks are designed for DMP-A6. Two high-precision crystal oscillators (45.1584MHz and 49.152MHz) respectively correspond to 44.1 KHz and 48KHz multiplied sampling, effectively reducing jitter and achieving more precise audio decoding.

Fully Balanced Preamp Circuit

DMP-A6 analog circuit adopts a fully balanced design from the DAC chip to the XLR and RCA stereo output. It provides better noise immunity, and improves channel separation by eliminating shared loops for stronger and more consistent signal quality.

2x ES 9038Q2M DAC Decoding

2x ES 9038Q2M are used to establish a Double Differential Quadruple Converter for DMP-A6 DAC decoding. Two DAC chips correspond to two channels for D/A conversion output independently. So that it effectively avoids the interference between channels, reduces the background noise, obtains a better signal-to-noise ratio, and greatly improves the dynamic range and other audio indicators. Supporting DSD512, PCM768@32bit, and MQA hard decoding.

Handpicked Audio Components

The sound quality of DMP-A6 analog output is monitor-level. The primary elements of the audio circuit are excellent, including WIMA capacitors from Germany, NICHCON dedicated audio capacitors, Murata chip capacitors and Omron relays from Japan, TI Audio Operational Amplifiers from the USA, etc. The goal is to provide a more authentic and pure sound performance.

Professional Tuning and Reliable Audio Indicators

The DMP-A6 has been expertly tuned, and the circuit has been thoughtfully constructed, thanks to the wealth of knowledge from engineers at Eversolo who have been actively involved in the audio industry for many years. THD+N is -120 dB (0.00009%), SNR is 128 dB and the dynamic range is 128 dB. The leading indicators provide a strong base for high sound quality.

Qualcomm QCC5125 Module

The Qualcomm QCC5125 Bluetooth audio receiving module used by the DMP-A6 supports SBC/AAC/aptX/aptX LL/aptX HD/LDAC and is compatible with Bluetooth 5.0. Connecting with mobile phones, tablets, and laptops via Bluetooth allows for simple music playback and CD-quality sound.

MQA

DMP-A6 includes MQA (Master Quality Authenticated) technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

Music Services at Your Fingertips

The DMP-A6 incorporates popular music services like TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, etc. You can take advantage of numerous high-quality online music services and revel in the allure of limitless streaming music.

Support for numerous third-party APPS, high-resolution audio Direct output using the original EOS engine.

Wireless Music Streaming

Roon Ready, Tidal Connect, and DLNA are supported by the DMP-A6. High-quality music can be streamed online to mobile devices in the same LAN, making it simpler to enjoy online music services and easier to play back music at home.

Music Library for Local Playback

22 Eversolo Music Library not only provides excellent local music playback performance but also greatly improves user interest in music management. It can add music files from a local hard drive or network storage and automatically retrieve music metadata from the cloud to build a custom music library by matching artists, albums, local CUE file,s and so on; songs are displayed in categories based on genres, albums, artists and sample rates; making a list of your favorite songs and searching for them by album, artist, or song initials.

Multiple Network Protocols

DMP-A6 not only has two high-speed USB 3.0 ports, and an SSD slot for local storage expansion, but also supports NFS, SMB v1/v2/v3, and UPnP sharing protocols, allowing users to browse and play multimedia content saved on NAS or network drives connected in the same LAN with gigabit network. Even high data rate DSD512 master files can be played without stuttering.

Effective Media Management System

The DMP-A6 offers a robust media management system that enables editing operations for local hard drive and network storage like copying, copying, pasting, cutting, and deleting. USB OTG port can be configured as USB OTG, making it easy to connect the PC to DMP-A6 via USB cable for local file copying and management. Internal SMB sharing function allows to sharing of media files from connected mobile devices or internal SSDs to other media playback devices, computers, or mobile devices in the LAN. So that DMP-A6 can be used as a network storage device to share audio sources at any time.

CD Playback and Ripping

The DMP-A6 allows for CD playback by connecting an external USB optical disc. CD Rip APP adopts a data validation mechanism and error correction function to save audio data from CD losslessly. The application's algorithm intelligently matches CD album and song names (officially released CDs are required), losslessly rips tracks, and automatically generates album and artist info.

Smart Control App

Android/iPhone/iPad control apps are developed for the DMP-A6. In addition to basic playback control and system set- tings, they also support asynchronous viewing of music library data and menus, which is convenient for music playback and data searching. Screen mirroring is also supported by installing third-party apps.

Digital Filters Meet Different Personal Preferences

The DAC setting of the DMP-A6 provides seven types of digital filters, with different modes corresponding to different sound characteristics, which can be switched according to personal preferences.

Personalized VU Meters

A wide range of personalized dynamic VU meters are tailored for audiophiles. A wonderful interactive experience is offered with real-time full-format music display, including DSD.

Aluminum Chassis Unique Appereance

The DMP-A6 is made from aviation aluminum and features a CNC machined body for a solid construction. The brushed panel and frosted anodized body are a great combination of classic and modern elements to suit the preferences of experts.

Hi-Res Audio

The DMP-A6 is Hi-Res Audio certified by JAS, with superior sound quality.

IN THE BOX

• Power cable
• USB cable
• Screwdriver
• User Manual

SPECIFICATIONS
