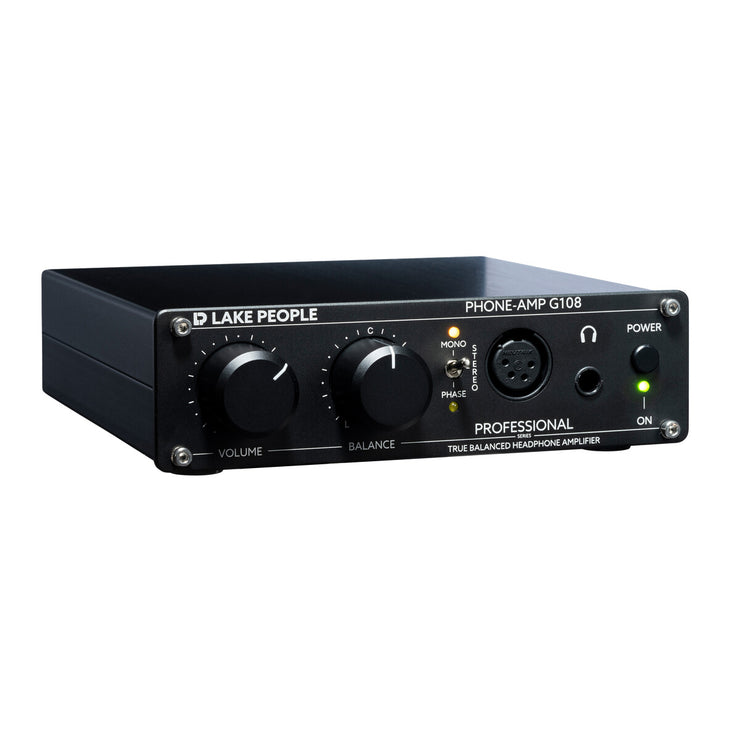

Lake People G108 Headphone Amplifier

desktop

Product SKU: G108 (115V)



Ready Monday Monday

Order now for shipping on Monday Order now for shipping on Monday

30 day Returns

Sometimes it's not meant to be. Let us know within 30 days.

Authorized U.S. Dealer

Having issues after 30 days? Comes with Lake People's 2 year limited warranty

🕬  Use code OCTDEAL for 10% off this item

$799.99 Sale

Found a better price?
We can match it


1 LEFT IN STOCK
1 units left
1

Email me when available

Email me when this product is in stock again

(Fun fact: By filling out this form, you let us know there's demand for this item!)

We will only send you a follow-up email once the product becomes available. Your email address will not be shared with anyone else.

Financing options

Need help or product is sold out? Call (212) 354-6424, Chat or Email us

Product Details

↓ Details provided by Lake People
(Specifications and appearance of this product are subject to change without notice)

  • Mains input via CEE connector – no wallplug adapter
  • 10 VA toroidal transformer
  • Selectable RCA and XLR inputs
  • Internal “PRE-GAIN“ (Range: -18 … +18 dB)
  • 1“ solid aluminum volume control and balance control
  • “Mono“ Mode and “(Left Channel) Phase“ switchable
  • True balanced amplifier with 4 power stages
  • Amps made with Texas Instruments “OPA 551“
  • > 20 VRMS into 600 Ohm (for high impedance headphones)
  • > 2700 mW into 100 Ohm (for low impedance headphones)
  • 1 headphone output via ¼“ jacks
  • 1 headphone output via 4-pin XLR
  • Overall dimensions: 6.6 x 1.85 x 7.25in (WxHxD)
  • Front panel: 6.6 x 1.85in(WxH)

Same as G105 - but for those who value the advantages of Balanced Headphones

SCOPE OF DELIVERY

  • 1x Lake People G108
  • 1x Power Chord
  • 1x Manual

TECHNICAL DATA

Item number: 1008324
dimensions 168 x 49 x 145 mm (BxHxT)
input sensitivity + 6 dBu
input impedance 10 kOhms
housing Desktop
headphone Out 1 (1/4" jack, unbalanced), 1 (4-pin XLR, balanced)
Line I/O 2 / 0 (XLR)
max. output level 520 mW (600 Ohm) / 1050 mW (200 Ohm) / 1100 mW (100 Ohm) / 1200 mW (50 Ohm) / 500 mW (16 Ohm)
signal-to-noise ratio (SNR) > 122 dBA
power supply Internal 230 V / 115 V AC
THD+N (@ -1 dBFs) < 0,001 %
frequency range 2 Hz - 150 kHz (-3 dB)
crosstalk < 70 dB
