Sony NW-WM1AM3 Walkman Digital Media Player

NW-WM1AM3

Take portable listening to a new level with the WM1AM3 Walkman®. Premium audio components, advanced sound processing, and High-Resolution Audio reveal powerful bass, clear vocals, and exceptional detail. A responsive 5.5-inch display, Wi-Fi streaming, expandable storage, and a refined design make every listening experience feel more immersive.

• Premium Chassis Construction: A rigid milled aluminum-alloy frame, direct gold-plated OFC rear chassis, and OFC shielding help stabilize ground performance while reducing digital noise and interference for clearer bass, vocals, and spatial detail.
• S-Master HX Digital Amplification: S-Master HX digital amplification supports Native DSD, 4.4 mm balanced output, and high-power playback, while advanced look-ahead noise shaping with three selectable types improves D/A conversion for fast transients, energetic bass, and extended high-frequency response.
• Advanced Power Architecture: Dual large solid high-polymer capacitors, an ultra-low-noise LDO regulator, hand-soldered OFC wiring, and custom FT CAP3 components maintain stable power delivery and isolate digital-circuit noise from the audio path.
• DSD Remastering Engine: The DSD Remastering Engine resamples PCM audio into an 11.2 MHz, 1-bit DSD stream for a smoother, more analog-inspired presentation across downloaded and compatible Wi-Fi-streamed music.
• Edge-AI DSEE Ultimate: Edge-AI DSEE Ultimate upscales compressed and CD-quality audio in real time, restoring high-frequency information, acoustic subtleties, and dynamic range for a richer, more complete listening experience, including with compatible wireless headphones.
• High-Resolution Audio Playback: High-Resolution Audio playback supports 11.2 MHz Native DSD through the balanced connection and PCM up to 384 kHz/32-bit, bringing listeners closer to the detail of the original studio recording.
• High-Quality Wireless Listening: LDAC transmits up to three times more data than standard Bluetooth audio, while Bluetooth 5.4 and support for aptX Adaptive, aptX HD, AAC, and other codecs provide flexible wireless listening with compatible headphones and speakers.
• Up to 33-Hour Battery Life: Enjoy up to 33 hours of 96 kHz FLAC High-Resolution Audio playback using Sony's music player app, providing extended listening without compromising premium sound quality.
• Intuitive Touch and Tactile Controls: The larger 5.5-inch Full HD touchscreen, customizable Walkman Home Screen, tactile side keys, and ergonomic grip provide responsive navigation and comfortable one-handed operation.
• Flexible Streaming and Storage: Built-in Wi-Fi and Android compatibility support music apps, streaming, and direct downloads, while 128 GB of internal memory (approximately 91 GB available to users), microSD expansion, and USB 3.2 Gen 1 simplify library management.
• Analog-Inspired Sound Customization: The Vinyl Processor recreates subtle vinyl playback characteristics, while the DC Phase Linearizer offers six phase settings modeled on analog amplifier behavior. A 10-band equalizer provides further sound adjustment.
• Additional Audio Formats and Experiences: Support for MQA audio files and 360 Reality Audio music on compatible services adds more ways to enjoy an existing collection or discover immersive recordings.

High-end components

Built with premium audio components throughout, the WM1AM3 is engineered to reveal greater clarity, depth, and detail in every track.

Its direct-coupled chassis design uses screws to secure the aluminum frame and OFC rear chassis for a more stable ground. Inside, an OFC milled block shields the digital circuitry, while a high-purity 4N copper coil supports balanced output. Dual low-phase-noise crystal oscillators, gold-containing solder, a 10-layer low-dielectric circuit board, and an optimized separation of audio and digital circuitry further support precise signal reproduction.

Unique sound processing

Sony’s advanced sound processing gives you more ways to experience music, from faithful high-resolution playback to tailored analog-inspired sound.

Alongside DSD Remastering and DSEE Ultimate, the Vinyl Processor recreates characteristics such as low-frequency resonance and surface noise. The DC Phase Linearizer provides six selectable settings to emulate the phase characteristics of different analog amplifiers. The S-Master HX amplifier also offers three selectable look-ahead noise-shaping types.

Long battery life and usability

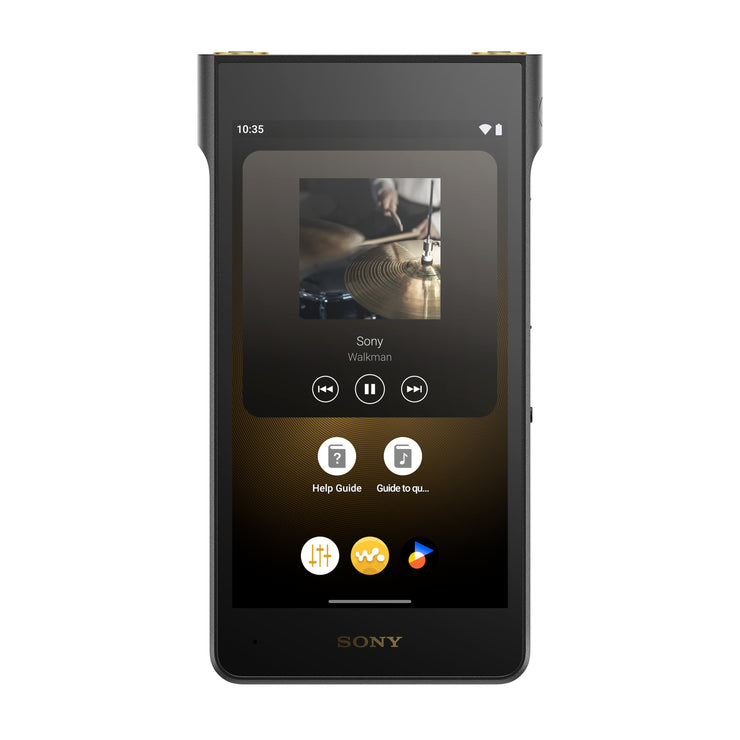

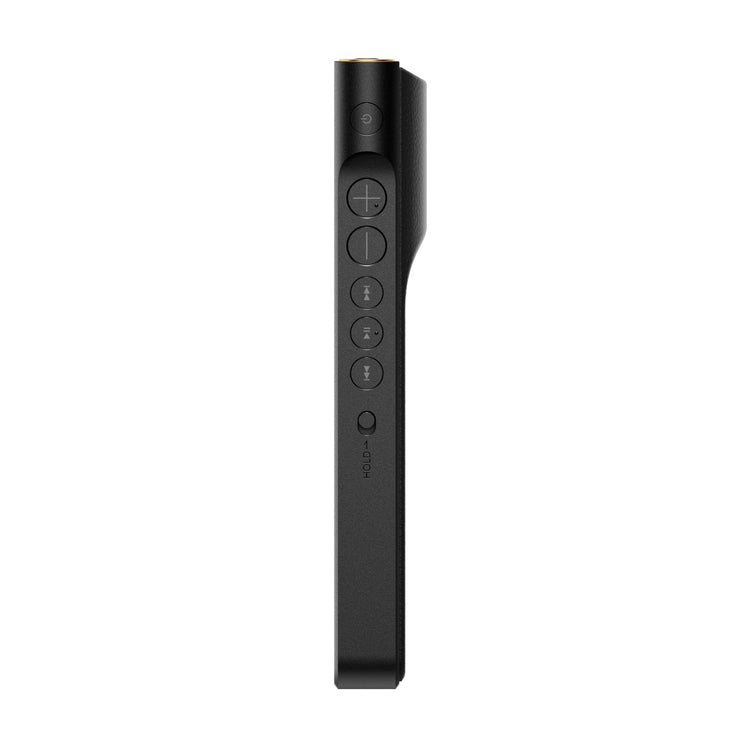

The larger 5.5-inch Full HD (1920 x 1080) touchscreen display offers a smooth and responsive interface, while long battery life allows you to immerse yourself in your music for up to 33 hours of 96 kHz FLAC High-Resolution Audio playback using Sony's music player app. Playback of 128 kbps MP3 files can last up to 35 hours. Dedicated side controls, a customizable home screen, and USB-C connectivity help make everyday use more convenient. Actual battery life varies with settings and usage.

Premium design

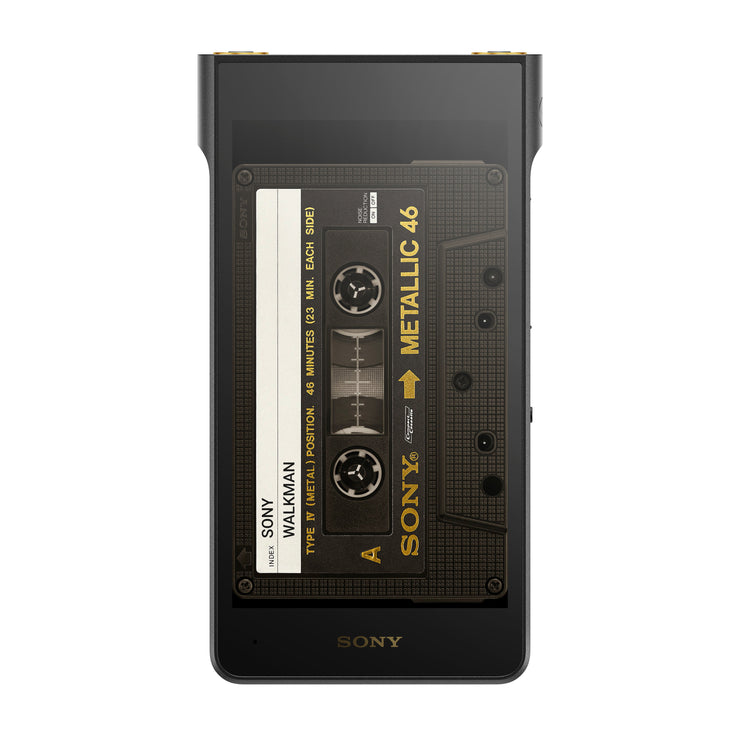

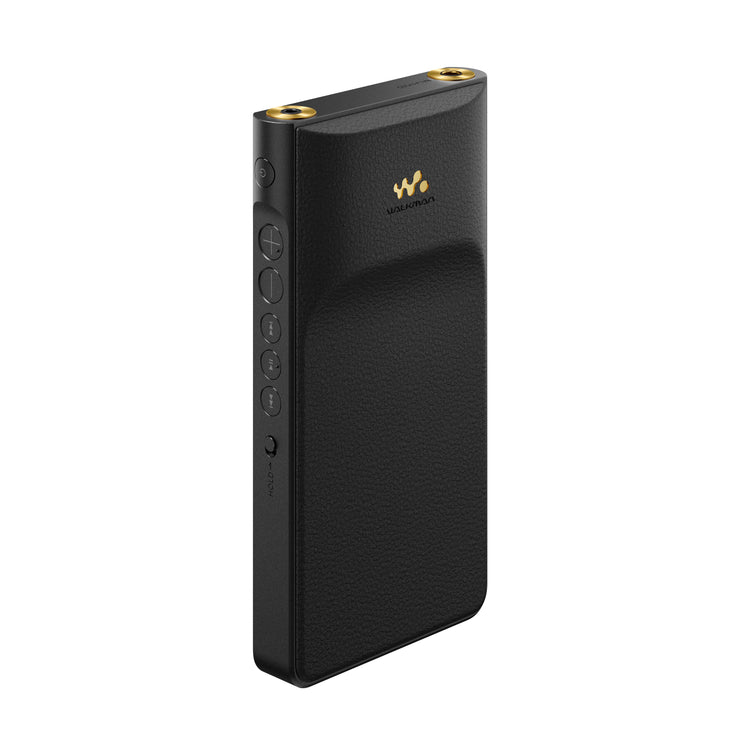

Featuring high-quality materials and thoughtful design touches, the WM1AM3 has a refined look and feel that matches its exceptional performance. Its leather-textured rear finish and carefully positioned rear pad add comfort while keeping the OFC chassis dedicated to audio performance. An analog-style volume display and a cassette-tape-inspired interface and screensaver bring classic Walkman character to the listening experience.

Specifications

Headphone Out (Balanced standard-jack)

• Connection: 4.4 mm balanced
• Frequency response: 20–40,000 Hz
• Maximum Power Output (JEITA 16Ω/mW): 250 mW + 250 mW (High Gain)

Headphone Out (Stereo mini-jack)

• Connection: 3.5 mm stereo
• Frequency response: 20–40,000 Hz
• Maximum Power Output (JEITA 16Ω/mW): 60 mW + 60 mW (High Gain)

USB DAC Mode

• USB DAC Mode: Supported

Software

• Operating System: Android 16

Playback and Display

• Display: 5.5-inch Full HD (1920 x 1080) TFT color touchscreen with LED backlight
• Supported audio formats: MP3, WMA, AAC, HE-AAC, FLAC, WAV, Apple Lossless, AIFF, APE, DSD, and MQA
• Maximum PCM support: Up to 384 kHz/32-bit (format-dependent)
• Native DSD support: Up to 11.2 MHz through the balanced output; DSD is converted to PCM for unbalanced playback
• Sound effects: Direct Source, 10-band equalizer, DC Phase Linearizer, Dynamic Normalizer, and Vinyl Processor

Connectivity

• Wireless: Wi-Fi and Bluetooth 5.4
• Bluetooth transmission codecs: SBC, AAC, LDAC, aptX, aptX HD, aptX Adaptive, and LC3
• USB: USB Type-C (USB 3.2 Gen 1)
• Memory card compatibility: microSD, microSDHC, and microSDXC

Storage

• Internal memory: 128 GB (approximately 91 GB available)
• Expandable storage: microSD card slot

Battery

• Battery type: Built-in rechargeable lithium-ion battery
• Battery life: Up to approximately 35 hours with 128 kbps MP3; approximately 33 hours with 96 kHz/24-bit FLAC using Sony's music player app

Size and Weight

• Dimensions (W × H × D): Approximately 86 × 157.6 × 23.2 mm (3.39 × 6.21 × 0.92 inches)
• Weight: Approximately 425 g (15 oz)
