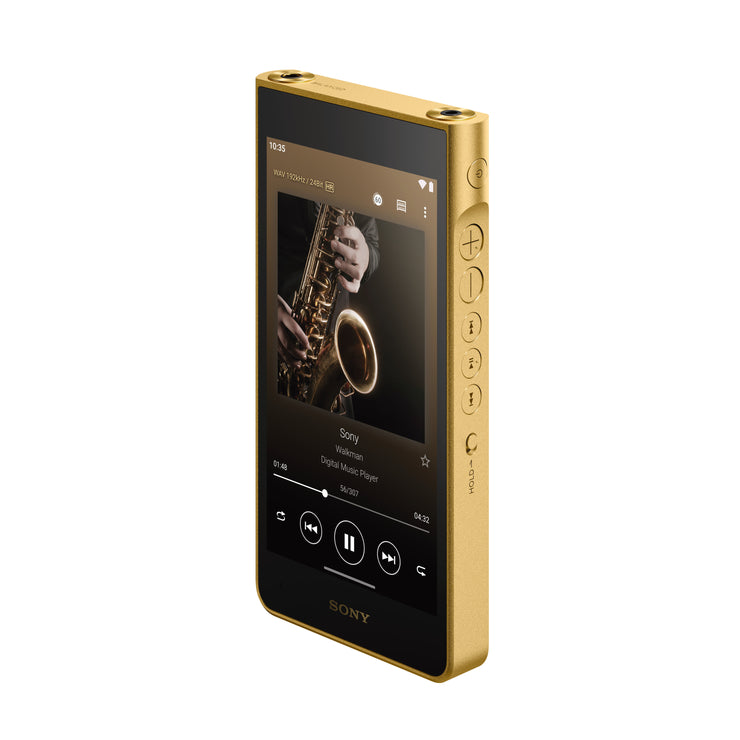

Sony NW-WM1ZM3 Walkman Signature Series Digital Media Player

NW-WM1ZM3

Experience music with exceptional clarity, depth, and detail on the flagship NW-WM1ZM3 Walkman®. Premium audio components and a precision-machined oxygen-free copper body help deliver powerful bass and an expansive soundstage, while the responsive 5.5-inch display puts intuitive control at your fingertips—all backed by decades of Sony audio engineering expertise.

• Oxygen-Free Copper Construction: Precision-milled front and rear oxygen-free copper chassis, gold plating, low-resistance screws, and advanced grounding help deliver clear, powerful bass, an expansive soundstage, and detailed mid-to-high frequencies.
• Faithful Digital Amplification: Sony-developed S-Master™ HX digital amplification supports Native DSD, balanced connectivity, and high-power output, with advanced noise shaping and three selectable look-ahead types for energetic bass, fast response, and clear, accurate sound.
• Premium Power and Signal Path: Dual high-polymer capacitors, hand-soldered OFC wiring, KIMBER KABLE, and carefully selected audio components provide stable power, reduce noise, and support authoritative bass, transparency, and dynamic sound.
• DSD Remastering Engine: PCM audio is resampled into an 11.2MHz DSD one-bit stream for a more analog-like character, with support for compatible music whether it is streamed over Wi-Fi or downloaded.
• Intelligent Sound Enhancement: DSEE Ultimate™ uses Edge-AI to upscale compressed and CD-quality digital music in real time, restoring acoustic detail, high frequencies, and dynamic range for a richer listening experience.
• High-Resolution Listening, Wired or Wireless: Enjoy High-Resolution Audio with support for 11.2MHz Native DSD through balanced headphones, PCM up to 384kHz/32-bit, LDAC, Bluetooth, and aptX™ Adaptive across compatible wired and wireless headphones.
• Stream and Download Directly: Wi-Fi and Android™ app compatibility let you access supported streaming services, download music, or enjoy your offline library directly from the Walkman®.
• Up to 33 Hours of Playback: Listen longer with up to 33 hours of 96kHz FLAC High-Resolution Audio playback, giving you more time to enjoy detailed sound without frequent charging.
• Responsive, Customizable Display: The larger 5.5-inch HD touchscreen provides smooth, responsive navigation, a customizable Walkman Home Screen, and larger album artwork for a more intuitive listening experience.
• Premium, Practical Design: A refined metal headphone-jack surround, tactile side controls, comfortable grip, 256GB of integrated memory, microSD expansion, and USB-C connectivity combine distinctive style with everyday usability.

Class-leading components

No compromise components mean the WM1ZM3 delivers the highest possible sonic performance available anywhere.

The main chassis is precision-milled from 99.99% pure oxygen-free copper with gold plating, while the rear chassis uses 99.96% pure OFC with direct gold plating. A direct-coupled structure with low-resistance, gold-plated screws helps stabilize grounding, while an additional OFC milled block shields the digital circuitry from interference.

Inside, dual large solid high-polymer capacitors provide dedicated power reserves for the digital and audio sections, complemented by Sony's custom FT CAP3 capacitors and an ultra-low-noise LDO regulator. A high-purity 4N copper coil supports balanced output, while thick KIMBER KABLE wiring connects the amplifier to the balanced headphone jack to help minimize external noise and signal loss.

Further refinements include two low-phase-noise crystal oscillators for precise clock stability, gold-containing solder, and a 10-layer low-dielectric circuit board with copper-filled vias. An optimized layout separates the audio circuitry from the power and digital sections, helping preserve clarity, instrument separation, and soundstage precision.

Sound processing

Our unique sound processing technology gives you more ways to enjoy different types of music than ever before.

In addition to the DSD Remastering Engine and DSEE Ultimate, the WM1ZM3 offers a range of customizable sound settings. The Vinyl Processor recreates subtle characteristics of analog playback, including low-frequency resonance and surface noise, while the DC Phase Linearizer simulates the phase characteristics of analog amplifiers with six selectable settings.

A 10-band equalizer, Dynamic Normalizer, and Direct Source mode provide additional listening flexibility. The Walkman also supports MQA audio file playback and compatible 360 Reality Audio content for an immersive listening experience.

For wired listening, the 4.4mm balanced headphone output separates left and right signals to minimize interference and signal deterioration. Native DSD playback is supported through the balanced connection, while DSD playback through the unbalanced output is converted to PCM.

Long battery life and Usability

The larger 5.5" HD touchscreen display offers a smooth and responsive interface, while its long battery life allows you to immerse yourself in your music for up to 33 hours of 96kHz FLAC High-Resolution Audio playback without compromising on sound quality.

The built-in rechargeable lithium-ion battery takes approximately 4.5 hours to fully charge. Actual playback time varies depending on the audio format, connection type, playback application, and settings.

The customizable Walkman Home Screen provides easy access to your music, while the larger album artwork and intuitive navigation make browsing more enjoyable. Music can be organized and searched by artist, album, genre, composer, playlists, folders, and more.

Premium design

Featuring distinctive design elements passed down through generations—including the headphone jack and side keys—and crafted with carefully selected audio components, the WM1ZM3 delivers both a rewarding user experience and distinctive style.

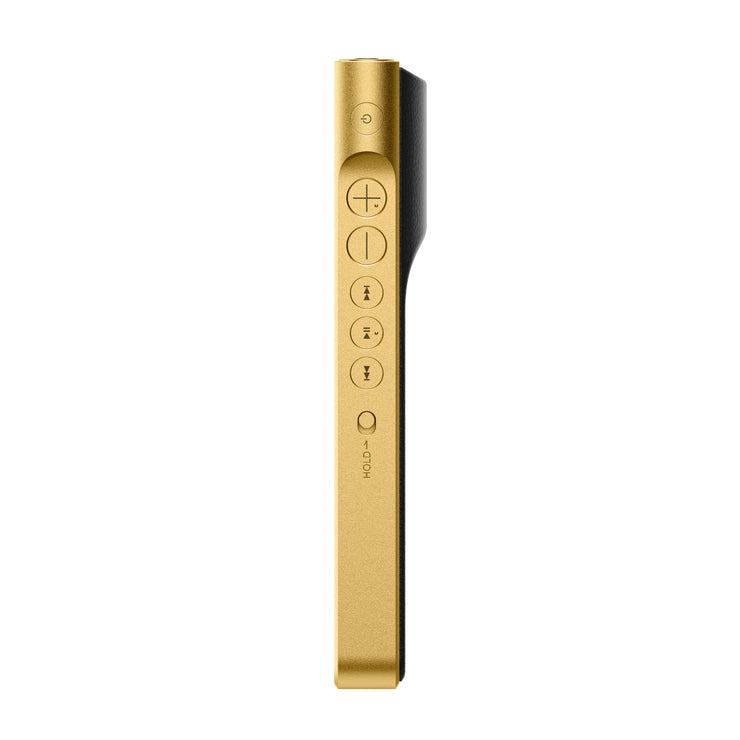

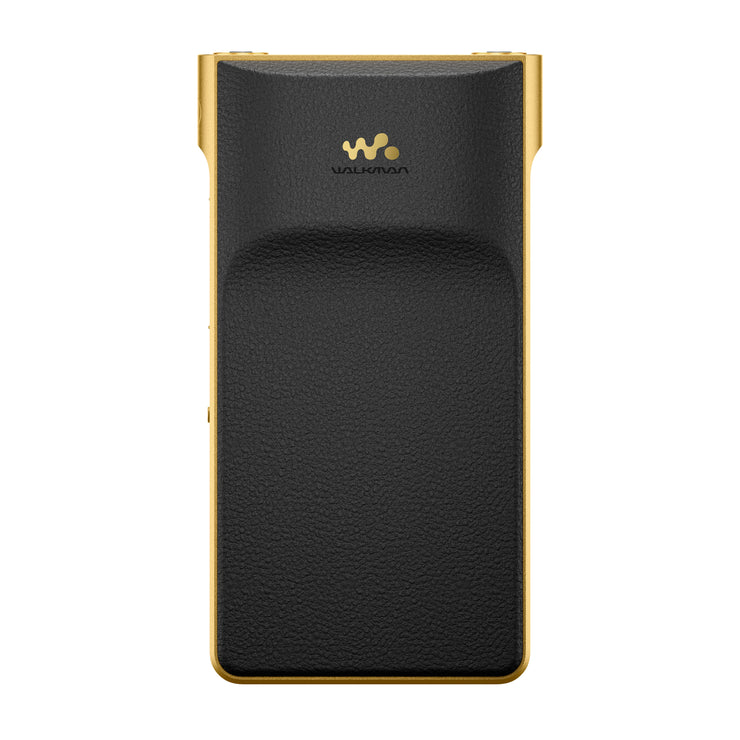

The circular machined-metal headphone-jack surround adds a refined appearance, while the leather-textured rear pad provides a comfortable tactile experience and prevents direct contact with the OFC rear chassis. Intuitive physical controls make operation convenient without relying entirely on the touchscreen.

Inspired by classic audio equipment, the Walkman features an analog-style volume interface and a distinctive cassette tape screensaver that changes its appearance depending on the music codec being played. The USB Type-C port supports USB 3.2 Gen 1 for fast music transfers, while the microSD slot expands storage beyond the built-in 256GB.

Sony has also eliminated plastic from the WM1ZM3's packaging materials as part of its efforts to reduce environmental impact.

Specifications

Wi-Fi

• FREQUENCY BAND: 2.4 / 5 GHz

Headphone Out (Stereo mini-jack)

• Frequency: 20-40,000 Hz
• Maximum Power Output (JEITA 16Ω/mW): 60mW+60mW (High Gain)

Headphone Out (Balanced standard-jack)

• Connector: 4.4mm balanced
• Frequency: 20-40,000 Hz
• Maximum Power Output (JEITA 16Ω/mW): 250mW+250mW (High Gain)

Playback & Display

• Audio Playback Formats: MP3, WMA, FLAC, WAV, AAC, HE-AAC, Apple Lossless (ALAC), AIFF, DSD, APE, MQA
• FLAC: Up to 384kHz/24-bit
• WAV / AIFF: Up to 384kHz/32-bit
• Native DSD: Up to 11.2MHz (balanced connection)
• Display Resolution: HD (1280 x 720 pixels)
• Display Type: TFT color display with white LED backlight
• Sound Effects: Direct Source, 10-Band Equalizer, DSEE Ultimate, DC Phase Linearizer, Dynamic Normalizer, Vinyl Processor
• Playback Modes: Shuffle, Repeat One, Repeat All, All Range, Selected Range

Connectivity

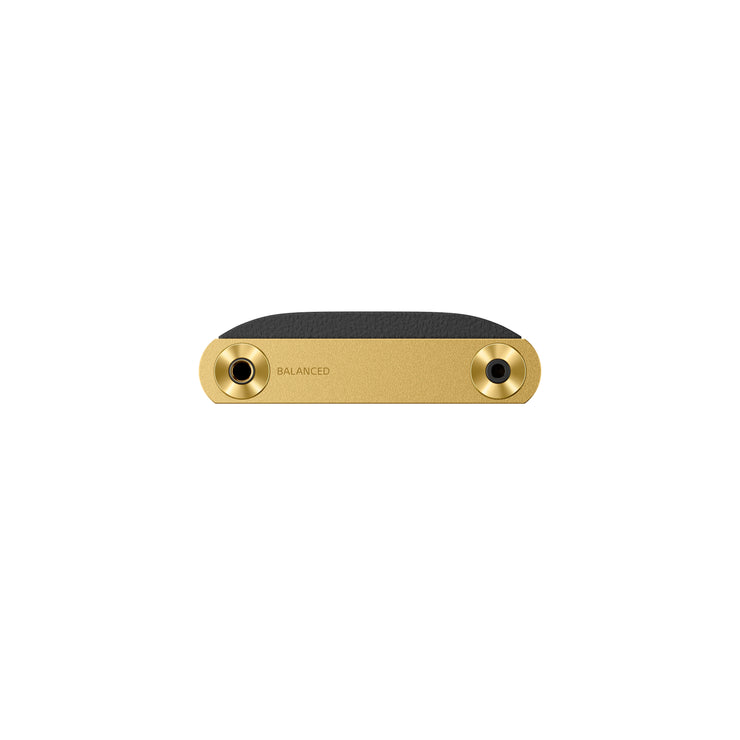

• Wired Headphone Outputs: 3.5mm stereo mini-jack and 4.4mm balanced jack
• Bluetooth Version: 5.0
• Supported Wireless Audio Technologies: LDAC, aptX Adaptive

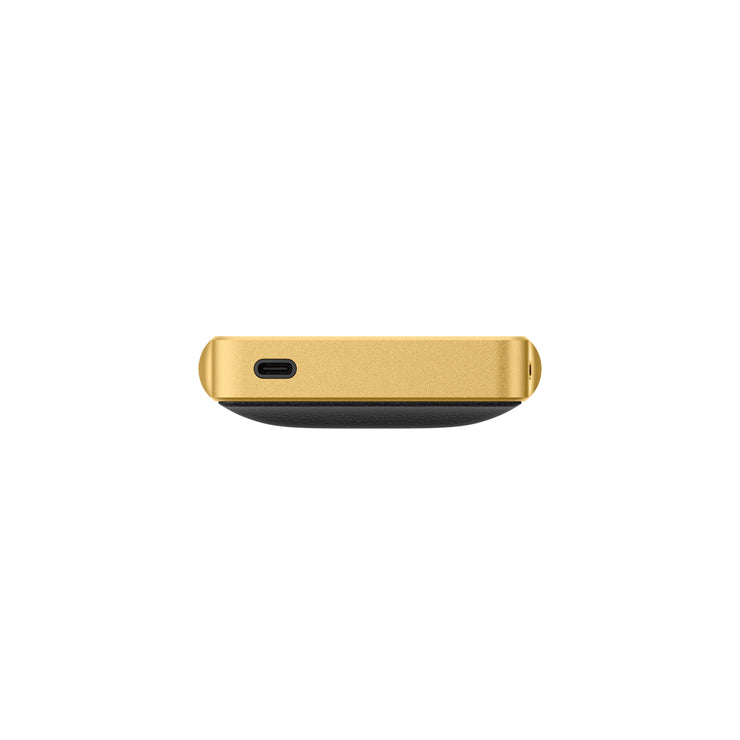

• USB: Type-C (USB 3.2 Gen 1)
• External Memory: microSD, microSDHC, microSDXC
• NFC: No

Storage Media

• Memory Size: 256 GB (approximately 207 GB available)
• Expandable Storage: microSD card slot

Size & Weight

• Dimensions (W x H x D): Approx. 80.5 x 142.5 x 21.0mm (3.17 x 5.62 x 0.83 inches)
• Weight: Approx. 490g (17.29 oz)

Power

• Battery Type: Built-in rechargeable lithium-ion battery
• Full Charging Time: Approx. 4.5 hours
• Charging and Power Supply: USB power

Software

• Operating System: Android 16
